TGA – Track Chains Production
Engineering Strength Beneath Every Machine
Our Track Group Assembly (TGA) and track chains are manufactured using advanced heat-treatment processes for exceptional strength, flexibility, and wear resistance. Designed for heavy loads and harsh environments, they ensure smooth operation and extended machine life.
Our Track Chains (TGA) are manufactured using advanced production techniques to ensure:
- Superior strength and flexibility
- Excellent wear life
- Smooth operation under heavy loads
Ideal for machines operating in rocky, muddy, and abrasive terrains.
From excavator track shoes to dozer track chain, including heavy-duty, lubricated or sealed and greased track chains, Unique Spares products and spare parts offers strength, durability and simplified maintenance, designed for uneven, harsh and loose grounds. We place a great emphasis on quality in the production. For this reason, all Unique Spares track chains are specially developed for the increased robustness of pins and bushings.
Supply range
- We creates track chains with reinforced links and shoes, stronger pins and bushings for heavy-duty, high impact applications and highly abrasive soil.
- High-impact applications improves the working lifetime of components by mechanically locking the pin to the link, which results in the avoidance of ‘end-play generation’ and ‘pin walking’ in a track chain.
- All weather version for temperatures ranging from -45°C to 50°C.
Mining

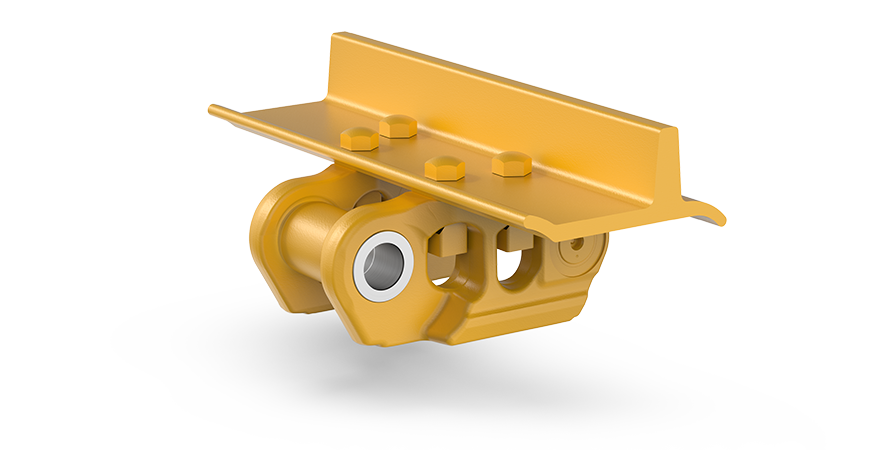

Mining Dozer track chains
Track group assembly for mining bulldozers
Chain features
- Chain pitch ranging from 240-318 mm.
- Newly developed sealing system and provide maximized joint durability.
- Our design extends track chain life and allows to plan predictive maintenance with reusability of the inner components.
Shoe features
- Single grouser common for dozers.
- High-grip track shoes are required to facilitate dirt removal.

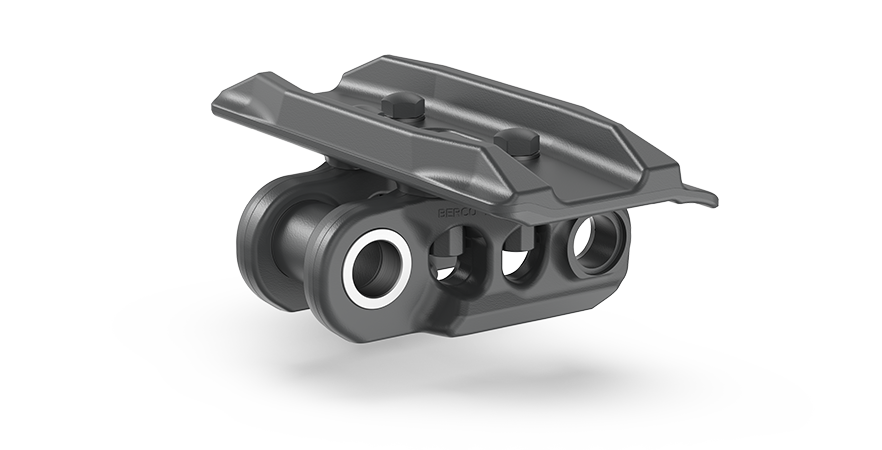

Mining Excavator track chains
Track group assembly for mining excavators
Chain Features
- Chain pitch ranging from 318 | 350 | 395 mm.
- Conventional chain design with forged track link and forged shoe plate.
- Each component is designed with optimized steel grade and heat treatment to accomplish the “mission”.
Construction

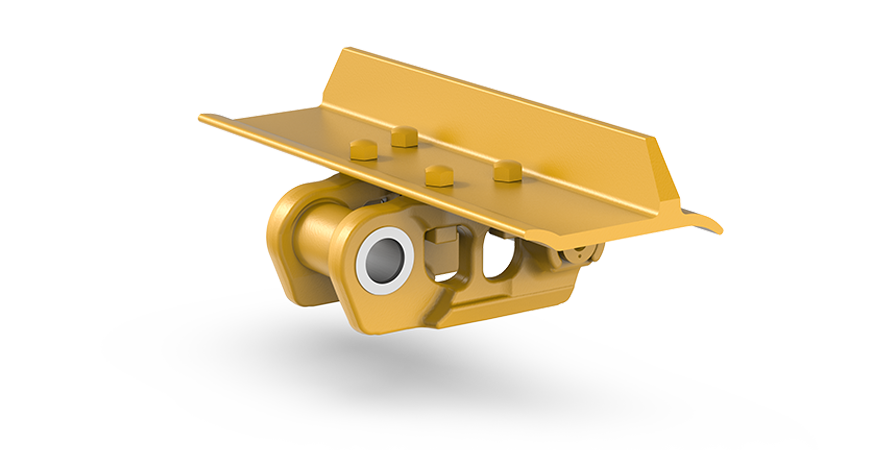

Construction Dozer track chains
Track group assembly for medium size bulldozers
Chain Features
- Stepped bushing available on selected machine models.
- The track chain reduces friction between components and fuel consumption.
Link Features
- Taller track link profile for more wear material.
- Deeper heat treatment case depth.
Shoes Features
- High grip track shoes required to facilitate dirt removal.
- Clipped corner and mud hole as options.

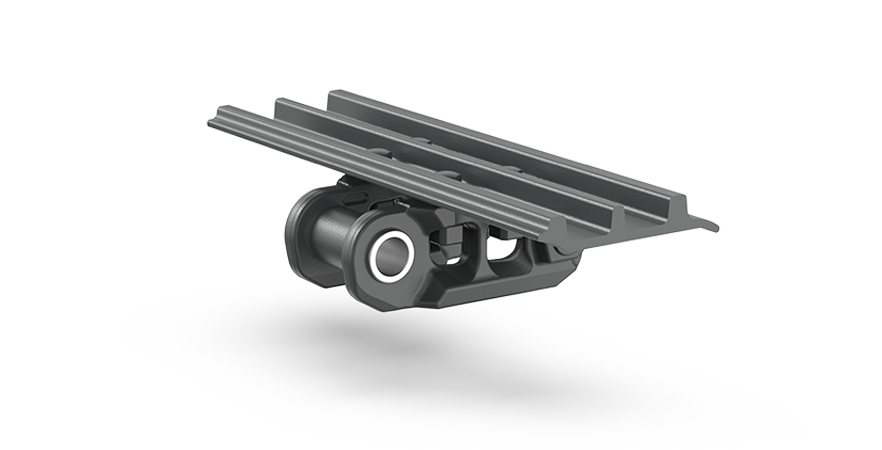

Construction Excavator track chains
Track group assembly for medium size excavators
Chain Features
- Track link with optimized design in the main structural sections.
- Pin and bushing with selected material and heat treatment for high load and high impact resistance.
Press-fit type master pin
- Used in more severe applications, it requires a field press for the assembling procedure.
T-type master pin
- Low severity application and service, which doesn’t require a field press for the assembling procedure.
